Height Adjustment

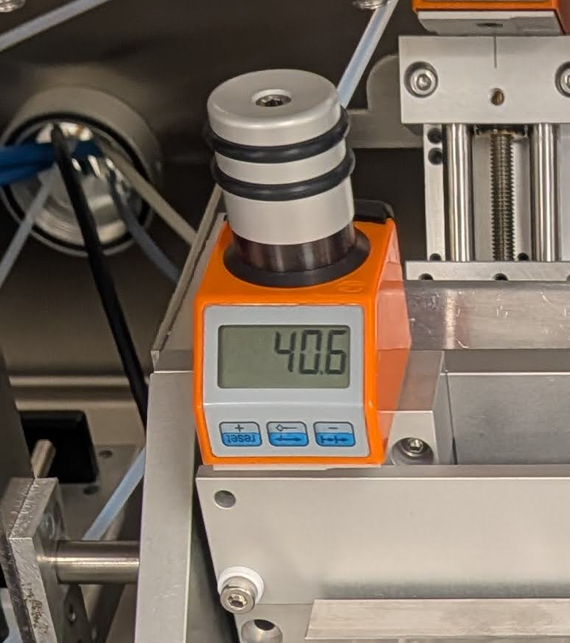

The blade height above the substrate is adjusted manually on the coating head using the mechanical adjustment knobs. The height can be checked against a plastic color coded shim.

Note that the number on the display is amount of turns of the knob, not the actual distance between the blade and the substrate. The actual distance can be checked with the table below.

Color and thickness reference

Color	Swatch	Thickness (inch)	Thickness (µm)
Silver		0.0005	12.7
Gold		0.00075	19.05
Amber		0.001	25.4
Purple		0.0015	38.1
Red		0.002	50.8
Green		0.003	76.2
Tan		0.004	101.6
Blue		0.005	127
Transmatte		0.0075	190.5
Brown		0.010	254
Black		0.0125	317.5
Pink		0.015	381
Yellow		0.020	508
White		0.025	635
Orange		0.030	762

Conversion: 1 inch = 25,400 µm. Color swatches are illustrative.
